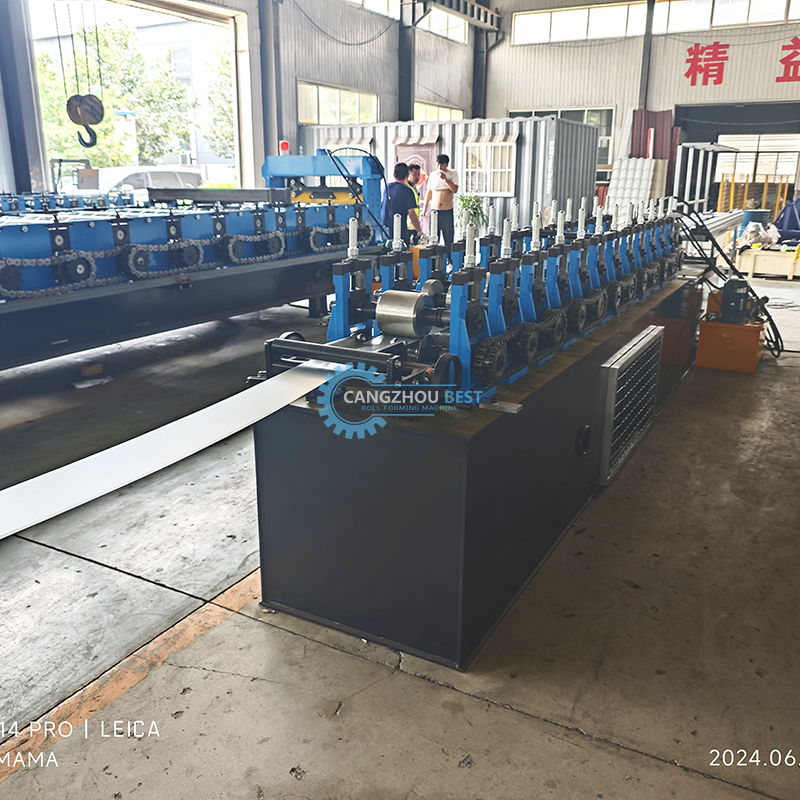

    Flying High Speed Gypsum Board Ceiling Drywall Stud Track Roll Forming Machine

    Ask Lasest Price
    Brand Name : BEST
    Model Number : YX45
    Certification : CE
    Price : 12500
    Delivery Time : 45
    Payment Terms : T/T,LC
    Supply Ability : 10SETS/MONTHS
    • Product Details
    • Company Profile

    Flying High Speed Gypsum Board Ceiling Drywall Stud Track Roll Forming Machine

    Applicable Industries

    Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other.


    Name

    Metal Stud And Track C Purlin Channel Roll Forming Machine

    Suitable Material

    Colored or galvanized steel coil, HRB60 or equivalent

    Thickness Range

    0.3-0.8 mm

    Coil Width Range

    According to your actual drawing.

    Electric Power

    380V, 50 Hz, 3 phase

    or according to your need.

    Dimension

    About 4.8*0.8*1.2 m(L*W*H), as per the drawing

    Cutting

    Automatically stop and cutting when it comes to the set length.

    Length of the Sheet

    You can set the length according to your need.

    It is controlled by PLC

    length accuracy: ±1mm.

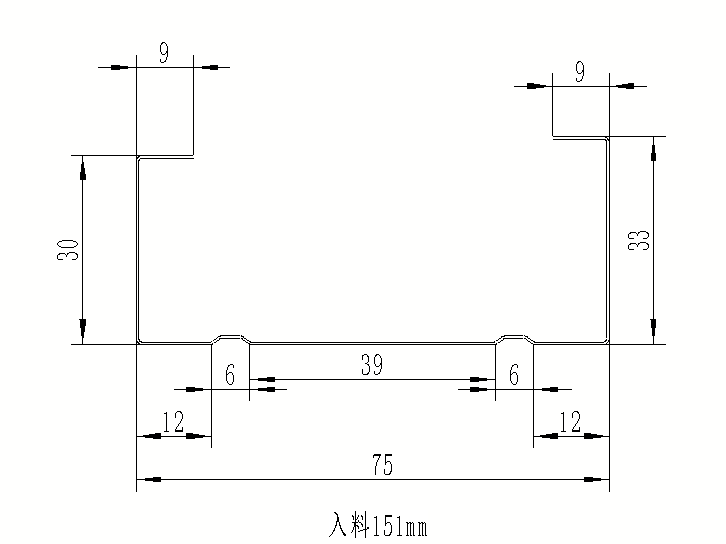

    Profile Drawing


    Working flow:

    Decoiler------feeding------roll forming---------cut to length-----output table


    Machine components list:

    NameNO.Unit
    1.De-coiler1set
    2.Forming machine1set
    3.Cutting device1set
    4.PLC control box1set
    5.Hydraulic pump station1set
    6.Production support table1set

    Main technical parameter:

    1. DECOILER
    (1) Max. Width: 500mm
    (2) Inner Diameter: Φ450 – Φ550 mm
    (3) Out Diameter: 1500 mm
    (4) Max. Loading Capacity: 3000 kgs


    2. ROLL FORMING MACHINE
    (1) Material Thickness: 1.0mm PPGI and GI

    (2) NO. of roller Stations:8groups
    (3) Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
    (4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

    (5) Diameter of shaft: 50mm

    (6) Frame panel : 14mm

    (7) Bottom frame: 36# H-section steel
    (8) Motor Power: 3kw

    (9)Driven type: chain

    (10)Speed: 8-12m/min


    3. CUT-OFF DEVICE

    Material for Cut-Off Modular:Cr12 steel after treatment

    Hardness for Heat Treatment:HRC58 – 62°

    Cut-Off Type: Mould Cutting

    Motor for Hydraulic Stand: 3kw


    4.PLC CONTROL BOX
    (1) Type: PLC Frequency Control System with touch screen
    (2) PLC Brand: Delta

    (3) Encoder Brand: Omron

    (4)Length Error: ±2mm

    (5)Language: English and Chinese

    (6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)


    5. HYDRAULIC PUMP STATION
    (1) Oil type: 46# hydraulic oil
    (2) Pump brand: China brand

    (3)Cooling fan


    6. PRODUCTION SUPPORT TABLE

    (1) No power type
    (2)Length: 2m
