    4kw 75mm Metal Light Gauge Steel Framing Machines With Software

    C140 75mm Metal Light Gauge Steel Roll Forming Machine With Software

    1. Product describtion:

    The technical core of the automatic light steel villa keel equipment is that this villa keel machine can automatically recognize the drawings. Just input the structural technical drawing of a light steel house in the format of an electronic file into the system computer of our villa keel machine. The keel machine system can automatically calculate how much light steel keel material is needed for this light steel structure house, where the keel is punched, including how long it is, the system can calculate it by itself, without manual calculation, and then through the system itself The calculated data starts to produce light steel house frame profiles without excessive manual involvement. The keel machine automatically presses, automatically punches, and automatically sprays codes. When all the materials of this light steel house are produced, the production is automatically stopped. , And then packaged, shipped to the construction site and assembled according to the drawings, a very user-friendly production mode, eliminating a lot of manual links.

    Software of High quality light gauge steel production machine

    Mechanics calculation module
    Vertex BD Detailing Master
    Production file output module (CSV format)

    Control system of High quality light gauge steel production machine

    Mechanics calculation module
    Vertex BD Detailing Master
    Production file output module (CSV format)


    2. Technical parameters of machine:

    SPECIFICATIONS FOR F1-C89 LIGHT GAUGE STEEL FRAMING EQUIPTION
    Machine overview Profile Size 89 x 41 MM
    Material Thickness 0.8 - 1.2 MM ( G345 - G550 Zinc Plated, Aluminumzinc plated )
    Material Width 181.4 MM-184.6MM
    Design Software Vertex BD
    Production control software YND
    Profile Type 1*C shape, 1*U Shape
    Maximum Line Velocity 2800 M / H
    General Production Efficiency 30m/min, 300 - 700 M /H
    Decoiler Automatic/ Electric single arm decoiler Auto with Servo Motor ; Power - 1.5 Kw ; Max load 3 Tons ;
    Levelling Automatic Levelling & Straightening machine

    Main roll forming & punching system

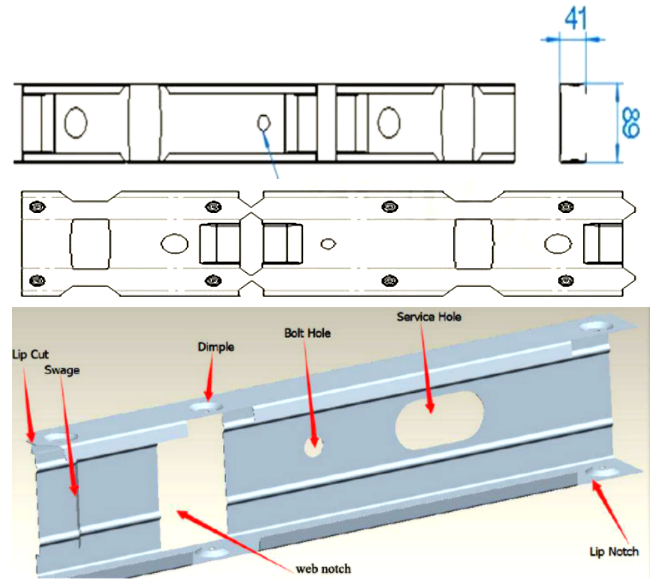

    Frame and roof truss die stamping 8 stations. (Dimple,Chamber cut,Web Notch,Lip Cut,Service Hole,Swage,Shear,Bolt hole)
    Rolling stations 11 stations
    Inkjet printer dual print heads, waist height on both sides to print, inkjet content can be set
    Cutting type Hydraulic cutting;
    Material of rollers Imported material, DC53. CNC center processing, HRC58-62°, fine grinding
    Material of shafts 40Cr after quenching and tempering processing, fine grinding
    Main Unit Power 7.5 Kw servo motor
    Hydraulic cutting Power 5.5 KW
    Equipment Total Power 14 Kw
    Hydraulic Cylinder Volumn 100 L

    Control system

    Function: Directly transfer the design parameters to the control computer through the USB interface or the network, import and automatically read the BOM documents by the NC control software installed in the computer, and then select the production batch after importing.
    Adjustment of Oil Pressure Computer setting
    Voltage 380V, 50HZ, 3Phrases
    Control computer 19 inch touch computer + one electrical main control cabinet
    Origin of main parts PLC (Mitsubishi), relay (Schneider), length encoder (OMRON), servo motor (INVT)
    Main Unit Remote Control Standard

    Other info

    Product Accuracy 0.5 MM
    Machine Size 4000 x 800 x 1200 MM
    Machine Weight 2000 Kgs ---3000Kgs
    Capacity Of Auto Decoiler 3 T

    3. Machine including:

    No.
    Name
    Unit
    Qty
    1
    Manual decoiler
    set
    1
    2
    Main forming machine
    set
    1
    3
    PLC control system
    Set
    1
    4
    Hydraulic pump station
    set
    1
    5
    post cut
    set
    1
    6
    electric motor
    set
    1
    7
    output table
    set
    1

    4. Advantage of our machine compare with others

    1) Compared with other domestic counterparts, low energy consumption, servo motor power: 7.5KW; hydraulic motor power 3.75KW;: high production efficiency: line speed 35m/min (punching speed: 15m/min), the unit is intensively broken The traditional molding concept, no jam, fewer molding passes, regular products, small size and convenient transportation to the construction site.
    2) One encoder is installed in the whole equipment to control host 1, printer 2, and printer 3. During the production process, the host computer only accepts one position signal, which ensures the accuracy of the hole position and the keel size.
    3) The transmission is a chain synchronous transmission to ensure the forming accuracy and the position accuracy and dimensional accuracy of the hole positions such as punching, cutting, closing, rounding, and nail holes. Ensure that small size keels can be easily produced.

    5. Packing

    1 Nude, with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
    2 This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
    3 All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
    4

    When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

    We can design as your different requirements,pls just let me know:

    (1)What is the final profile and type you exactly want to droduce?

    (2)Which kind of decoiler you would prefer ,manual or full automatic?

    (3)Suitable material,steel or aluminium,coil width and thickness.

    And then,we will offer the best price with top products and service to you!don't be hesitate,just contact us!

    Why choose us?

    1) We supply all the technical support,such as engineers,drawings,and instruction manual.

    2) We send one or more than one engineers to client for installing and adjust all the machinery

    3) Buyer also can sent workers to our workshop for learning how to conduct light keel steel tile forming machine

    4) Supply formula guide service and staple raw material purchase.

    5) We could supply turnkey project to you.

    6) We have good reputation from our customers both at home and abroad.

    6. Photos:(the whole house structure is produced by one machine)
