    PLC Quick Changeable Purline Machine , CZ Interchangeable Purlin Machine

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY75-300
    Certification : CE/BV/SGS
    Price : 11500-35500USD
    Supply Ability : 20 sets/month
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    PLC Quick Changeable Purline Machine , CZ Interchangeable Purlin Machine


    CZ quick changeable purline machine, CZ interchangeable purlin machine


    The C Z Purlin Roll Forming Machine can produce C and Z profiles. Produce the C and Z purlin by exchange one side of the roller up and down. Greatly improved the production efficiency and save the working space. The driving way is chain drive. Our C / Z channel purlin roll forming machine can be profile custom, and are lower cost, high efficiency, reliable working ,low energy consumption. We can do any type of equipment according to customer requirements.


    Working flow


    Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table





    Machine Component

    De-coiler1 set
    Leveling device1 set
    Forming machine1 set
    punching device1 set
    Cutting device1 set
    PLC control box1 set
    Hydraulic pump station1 set
    Production support table1 se



    Decoiler

    TypeManual type(standard)Hydraulic type(option)
    Width500mm600mm
    Capacity5000kgs5000kgs-8000kgs
    Inner diameter450-550mm450-550mm
    Outter dimater1500mm1800mm


    roll forming machine

    ItemParameter detail
    Processing MaterialGI and Black Coils
    Material thickness1-3mm(standard), 3-5mm(customized)
    Machine frame360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
    Machine siding panel
    Plate typeCasting Pillar type(option)
    Plate thickness:20mmPillar thickness:35mm

    Forming stations13-18 stations (according to the material thickness)
    Machine rollers

    high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm
    Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

    Machine Shaftφ80-90mm high garde No.45 steel after treatment,
    Machine spacersCNC lathing in high-precision and wire-electrode cutting
    Machine bearingsChina Haerbin bearing or SKF international bearing(option)
    Driving system2 inch chain or gear box(option)
    Machine power7.5kw-22kw(according to the size and thickness)
    Machine working speedwithout punching:8-12m/min or 10-30m/min(option)
    Machine testing methodAfter machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


    Punching device

    ItemParameter detail
    Frame processingthe whole levelling surface is made by drilling machine
    Mould materialCr12mov
    Mould processingwire eletrode-cutting for the mould shape, it will save pressure
    Hole sizeAccording to your request
    Hole numberAccording to your request
    Pressure20Mpa


    Cutting device

    Type

    Mould cutting

    Blade materialCr12mov quenching and grinding
    Blade processingwire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
    WorkingHydraulic type


    Stacker

    Type

    Manual

    Auto(option)

    Length2pieces, length is adjustableaccording to your requirement

    PLC

    Main itemParameter detail
    PLC

    Delta(standard) or according to your request

    InverterChina brand(standard) or according to your request
    Touch screenMcgs(standard) or according to your request
    EncoderChina brand(standard) or according to your request
    Voltage/HZ/Phase380v/50-60hz/3phase

    Hydraulic pump

    Main ItemParameter detail
    Motor

    3kw China brand or according to your request

    PumpChina brand or according to your request
    Solenoid valveChina brand or according to your request
    Cooling system

    Cooling fan

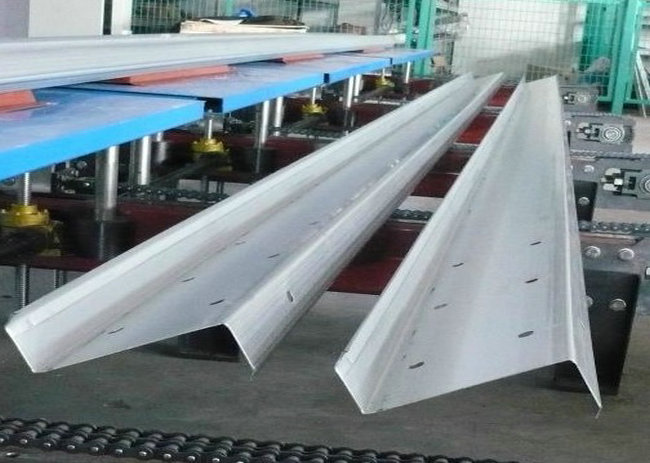

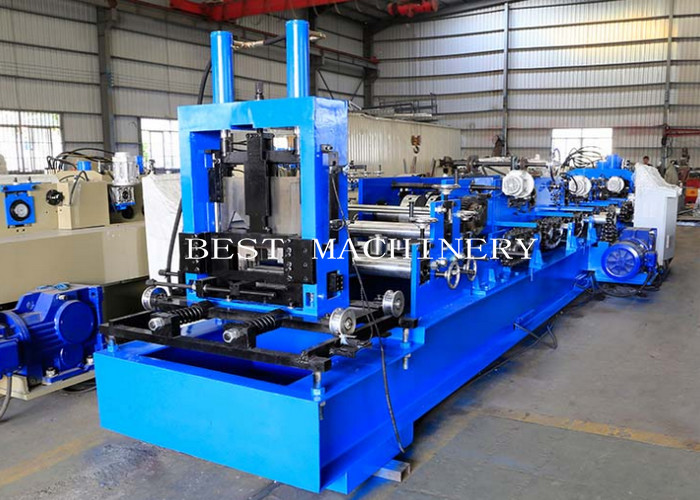

    Machine Photo

    PLC Quick Changeable Purline Machine , CZ Interchangeable Purlin Machine

    PLC Quick Changeable Purline Machine , CZ Interchangeable Purlin Machine


    Features of metal CZ automatic quick interchangeable purlin roll forming machine:

    1) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
    2) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
    3) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
    4) It is very easy to install the equipment and suitable for producing in the factory.
    5) The machine has features of low noise and high efficiency.
