    Builduing Light Steel Keel Roll Forming Machine Software Computer Control

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : YX-50
    Certification : CE,BV,SGS
    Price : USD12500-35500/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20sets/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

    Builduing Light Steel Keel Roll Forming Machine Software Computer Control

    Software Computer Control Light Steel Keel Roll Forming Builduing Machine


    1. What is the technical parameters of the machine?

    Technical parameters:
    1Hydraulic motor power3kw,4kw
    2Hydraulic Pressure10-12MPa
    3Voltage380V /3phase/ 50 HZ (or as your requirement)
    4Cutting driveDecelerating motor + Chain drive gear all by high-frequency
    5Control SystemSoftware Computer Control
    6Length measurementEncoder
    7Main Frame300mm/350mm H-Beam or 350mm
    8Backboard Thickness17mm/20mm
    9Chain Size1inch/2inch
    10Feeding MaterialBetter as your drawing or from our designer
    11Feeding Thickness0.18mm-0.8mm
    12Effective widthBetter as your drawing or from our designer
    13Productivity20-50m/min
    14Roll Station10rows(according to different design)
    15Roller Diameter40mm(depend on different design)
    16Roller material45# steel
    17Cutter materialCr12 mould steel heat-treated hardness of HRC = 60-62 degrees
    18Total Weight2t-12t
    19Package of machineWaterproofing membrane, standard export packing
    20Roll fromiomg machine of theComponents

    Manual decoiler-------------------1 set(5t)

    Guiding Platform------------------1 set

    Main Machine of Roll Forming------1 set

    Hydraulic Station------------------1 set

    Supporter Table-------------------1 set

    21machine technical parameters can be changed, according to customer's need.

    2. light keel steel framing roll forming machine

    Help you create a light steel system which is not only suitable for Chinese market but also suitable for international market.


    Europe, America, Japan, Korea Villa:

    Light steel + softness heat preservation + interior & exterior decoration = blended light steel villa


    China Villa:

    Light steel + blended heat preservation + interior & exterior decoration = blended light steel villa


    China Villa are used steel-concrete instead of concrete, the main market of light steel villa are base on big thickness and strongness of wall.


    3. Payment terms and after-sale service:

    1) FOB Tianjin / CIF your port
    2) Payment: 30% T/T deposit, and pay the balance before shipping.
    3) Delivery time: 60 working days.
    4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
    5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
    6) Installation and training:
    1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
    2. Without visiting, we will send you user manual to teach you to install and operate.
    3. COST OF INSTALLATION:
    The buyer should pay the installation charges (USD 100 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.

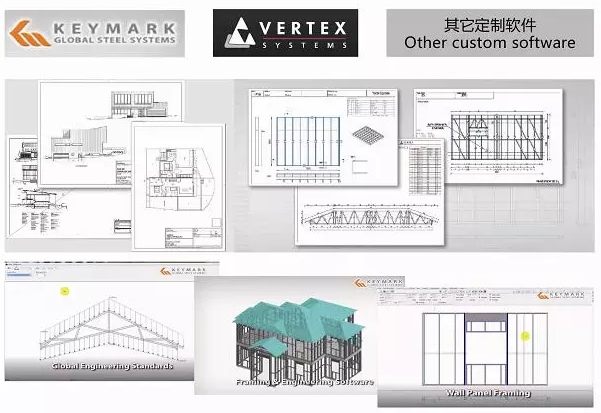

    Different Software Optional

    You can choose different software, which reduces your investment risk
