    Hydraulic Pressing Rain Gutter Forming Machine Gutter Making Machine Rustproof

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY300
    Certification : CE/BV/SGS
    Supply Ability : 20 sets/month
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Hydraulic Pressing Rain Gutter Forming Machine Gutter Making Machine Rustproof

    Gutter roll forming machine gutter making machine rain gutter forming machine


    We can produce The Bending Machine Bending Machine Gutter channel for you, is one of our main machines, we are a professional manufacturer of various Bending Gutter Gutter Machines. It is widely used today in the building, especially the building of The villa. The Road Not only has the function of decoration, but also have the function of collecting Rainwater. There are many different types of gutters, attached several drawings of the Ditch for reference, please have a check.


    Machine components


    De-coiler------------------------------------------1set

    Forming machine--------------------------------1set

    Cutting device -----------------------------------1set

    PLC control box ---------------------------------1set

    Hydraulic pump station-------------------------1set

    Production support table-----------------------1set

    Hydraulic Pressing Rain Gutter Forming Machine Gutter Making Machine Rustproof

    Technical Parameter


    1Material typeColor steel or galvanized steel
    2Material thickness0.2-0.8mm
    3The panel sizeCan produce according to the profile
    4Forming Speed8-12m/min
    5Material widthCan produce according to ur requirement
    6The effective widthCan produce according to ur requirement
    7ApplicationRoof sheet
    8The dimension6800*1200*1300mm
    9Forming station10
    10Diameter of the roller76mm
    11BracketWelded with 36#I-steel
    12Material of shafts:45#steel with rough finished and then refined finished
    13Main power3kw
    14Hydraulic power3kw
    15Cutting systemHydraulic cutting
    16Voltage380V 50Hz 3Phase
    17TransmissionTransmitted by the chain-bracket
    18Material of chain45#steel with heat treatment of HRC45-50°
    19Material of rollersHigh quality 45# steel coated with hard chrome 0.05mm
    20Material of RackComplete welded structure of A3 steel plate 18mm thickness

    PLC CONTROL BOX
    (1) Type: PLC Frequency Control System with touch screen
    (2) PLC Brand:Delta
    (3) Encoder Brand: Omron

    (4) Length Error: ±2mm

    (5) Language: English and Chinese

    (6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)


    HYDRAULIC PUMP STATION

    (1) Motor power: 3 kw
    (2) Oil type: 46# hydraulic oil
    (3) Pump brand: China brand


    Working conditions
    1. working size15m x 2m x 4m
    2. Power supply6kw
    3. Frequency50-60HZ
    4. Wires/cables4-6mm²(length according to workshop)
    5. Labor cost2 workers
    6. ToolsSpanners and screwdriver
    7. Lift device3-5t forklift or crane

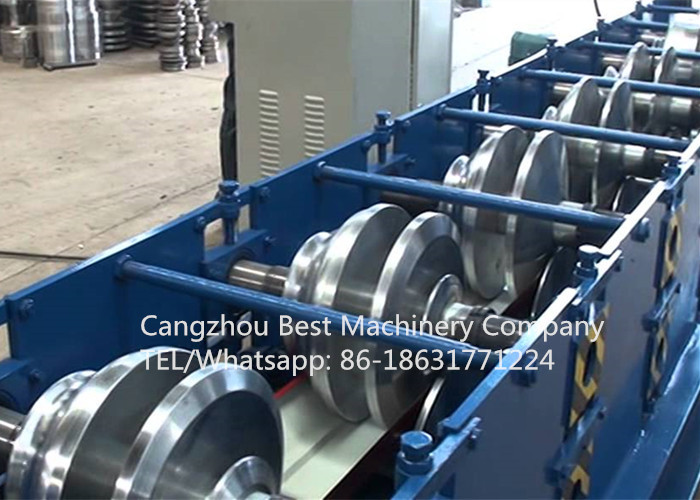

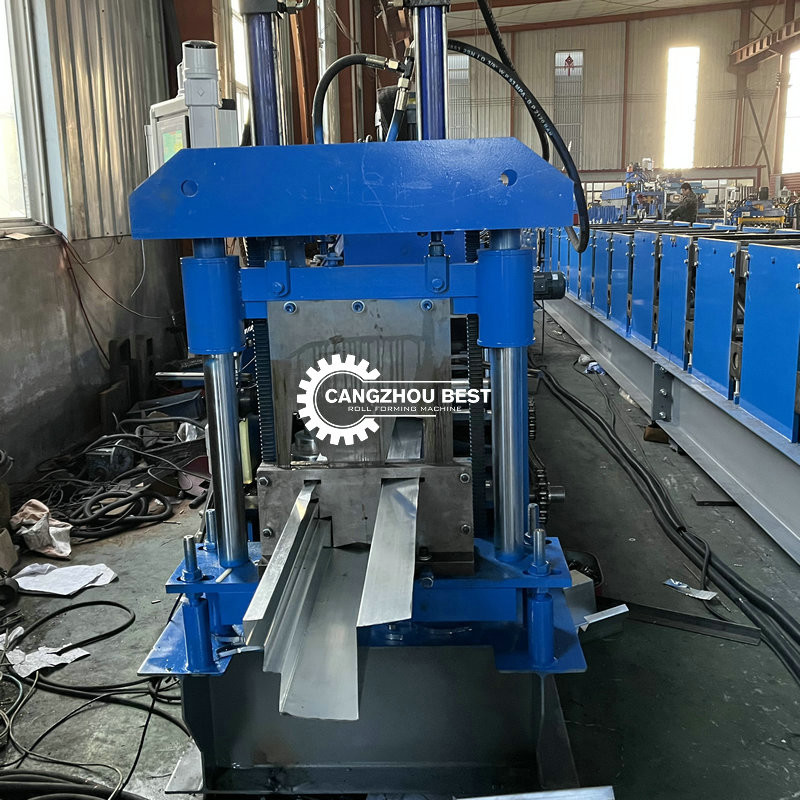

    Photos


    Hydraulic Pressing Rain Gutter Forming Machine Gutter Making Machine Rustproof

    Hydraulic Pressing Rain Gutter Forming Machine Gutter Making Machine Rustproof


    Installion
    ① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    ② Without visiting, we will send you user manual and video to teach you to install and operate.
    ③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

    RFQ


    Step 1: Tell us your requirements

    Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

    Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

    Step 4: Advanced payment and production

    Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

    Step 6: Balance payment and shipping

    Step 7: Handing Shipping files to help clients get goods from transporter in time.

    Step 8: Clients get goods and go into warranty time.
