    Gearbox Driven Steel Roll Forming Machine Door Window Frame Making

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY 152
    Certification : CE/BV/SGS
    Supply Ability : 20 sets/month
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    Gearbox Driven Steel Roll Forming Machine Door Window Frame Making

    Steel Door-Window Steel Frame Making Roll Forming Machine For South Africa


    Working flow


    Decoiler---------leveling--------punching with servo feeding---------roll forming--------cut to length----------output table


    Machine components:


    No.NameQty.
    1Decoiler1set
    2Feeding and guiding device1set
    3Roll forming machine1set
    4Punching machine with servo feeding1set
    5Hydraulic cutting device1set
    6PLC control box1set
    7output table1set


    Techincal description:


    1

    Suitable Raw Material

    0.8-1.2mm, G350-G550, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request

    2

    Under Frame

    400 H-beam

    3

    Sidewall

    16mm

    4

    Connect Bar

    25mm, zinc plated

    5

    Roller

    High grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway

    6

    Shaft

    70mm, solid, finish turning, cylindrical grinding, with keyway

    7

    Forming Stations

    25

    8

    PLC

    DELTA, TAIWAN

    9

    Main Motor

    5.5kw, Lichao, Shanghai, with reducer

    10

    Hydraulic Pump station

    4kw

    11

    Cutting blade

    Cr12Mov, quenching 58-62°, double oil cylinder

    12

    Oil paint

    National standard grey

    13

    Computer screen

    DELTA, TAIWAN

    14

    Chain

    1inch



    Payment Method

    30% as deposit ,balance payment after inspection while before delivery.

    Packing Method

    Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.

    After-sell Service

    In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.


    RFQ

    1.Does one machine can only produce one size?
    Not exactly, it depends on the machine.

    2.Do you have after sales support?
    Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.

    3. You are trade company or factory?
    We are Manufacturer.

    4.How long the machine could be made?
    Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
    can make it for you less than a month.

    5. Do you provide customized?
    Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
    professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.

    6.What's the warranty period?
    18 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
    Buyer’s Installation site.

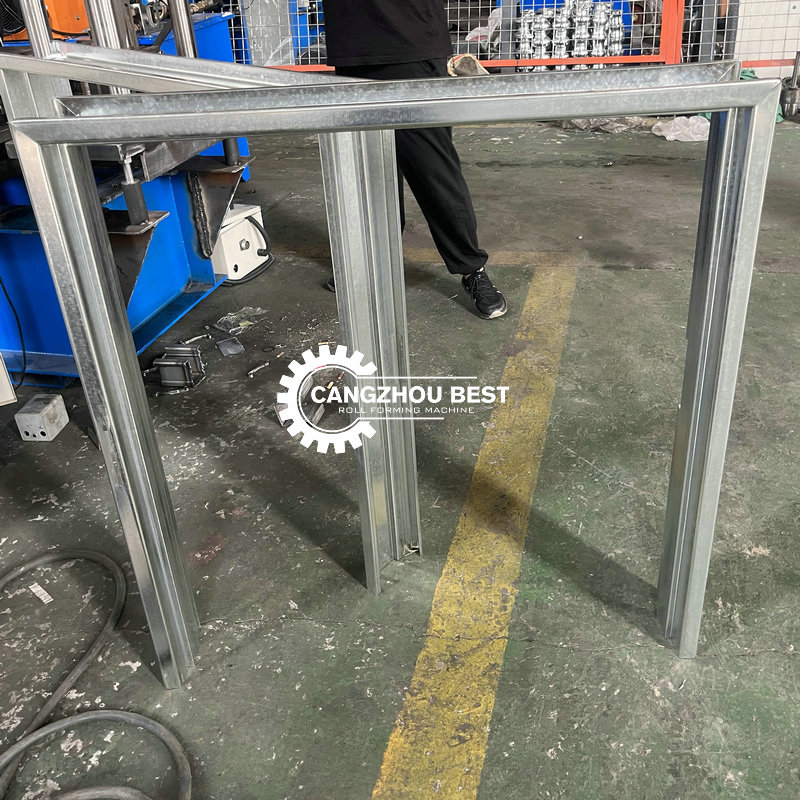

    Machine Photo
