    Glazed Aluminum Rib Roof Ridge Metal Roll Forming Machine High Speed

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY300
    Certification : CE/BV/SGS
    Supply Ability : 20 sets/month
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Glazed Aluminum Rib Roof Ridge Metal Roll Forming Machine High Speed


    Glazed Aluminum Metal Rib Roof Ridge Roll Forming Machine High Speed



    Machine components


    No.NameQty
    1.De-coiler1 Set
    2.Roll Forming Machine1 Set
    3.Hydraulic Pressing and Cutting Device1 Set
    4.PLC Control Box1 Set
    5.Hydraulic Pump1 Set
    6.Output table1 Set


    Parameter

    ItemParameter

    Suitable material

    TypePre-painted sheet
    Thickness(mm)0.5-0.8
    Yield stress (Mpa)235-350
    Width (mm)1250
    Working speed (m/min)About 5
    Main machine motor (Kw)4
    Decoiler motor power (Kw)2.2
    Decoiler hydraulic station motor power (Kw)3
    Hydraulic station power (Kw)7.5
    Total power (Kw)16.7
    PowerAC380V, 50HZ, 3P
    Control systemPLC - Touch screen and button
    External dimensions (L×W×H, m)15 × 3× 2

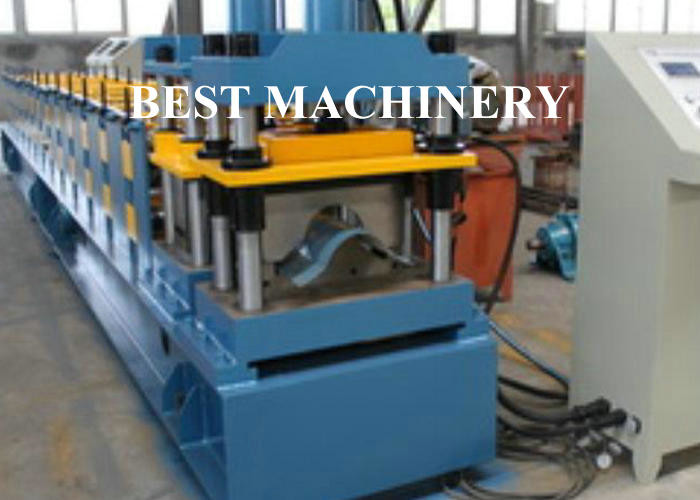

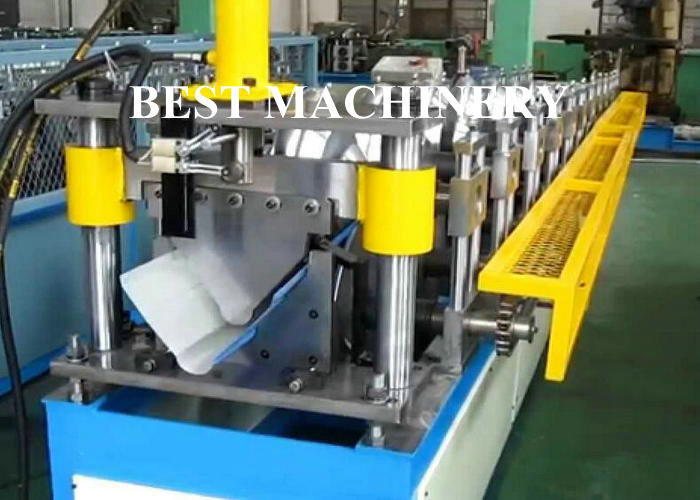

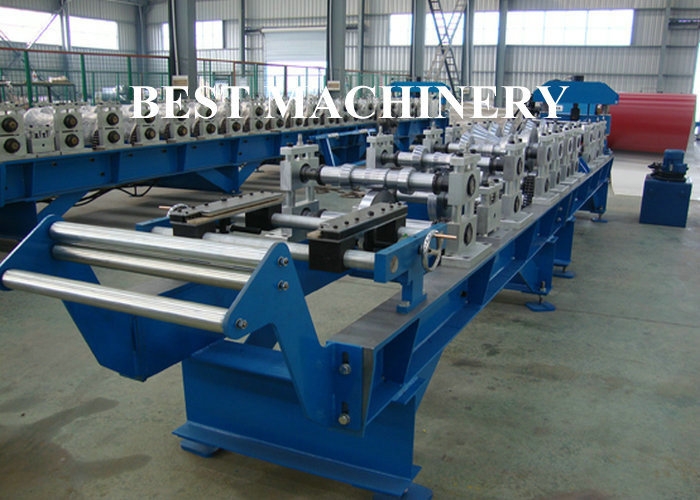

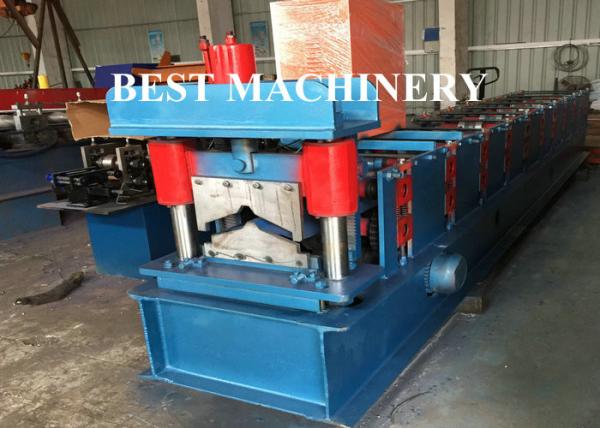

    Photos
    Glazed Aluminum Rib Roof Ridge Metal Roll Forming Machine High Speed

    Glazed Aluminum Rib Roof Ridge Metal Roll Forming Machine High Speed

    Glazed Aluminum Rib Roof Ridge Metal Roll Forming Machine High Speed



    Installion
    ① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    ② Without visiting, we will send you user manual and video to teach you to install and operate.
    ③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

    RFQ


    Q: Do you have after sales support?

    A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

    Q: Once we've bought a PPGI ridge cap roll forming machine from you, are you able to supply us with material?

    A: We can assist you in finding the appropriate materials to suit your machine

    Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers specifications, using top brand name components

    Q: What size decoiler can you supply us with?

    A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler

    Q: Do you have a warranty on your machines?

    A: One year warranty excluding electrical components.

    Q: What sales terms do you have?

    A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.

    Q: Do you have instruction manuals?

    A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings

    Q: Once a machine arrives at our factory what happens then?

    A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

    Q: What do I need to offload my machine from the container?

    A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

    Q: My current machine rollers need to be replaced. Would you be able to assist me?

    A: Yes. Send us your profile and specifications then we will manufacture the rollers for you

    Q: What kind of controls do you use on your machines?

    A: AMS, Delta, Schneider, Siemens, and Mitsubishi

    Q: What is your delivery time?

    A: Depending on the type of machine, duration of 25 days to 185 days from date of order.

    Q: Do we receive any updates while machine is in the manufacturing process?

    A: Yes.Regular updates on progress will be sent to you.
