    Best Glazed Roof Ridge Cap Roll Forming Machine 3KW 12m/min Production

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : YX-312
    Certification : CE,BV,SGS
    Price : USD5500-USD7500/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1set/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

    Best Glazed Roof Ridge Cap Roll Forming Machine 3KW 12m/min Production

    Best Glazed Roof Ridge Cap Roll Forming Machine 3KW 12m/min Production

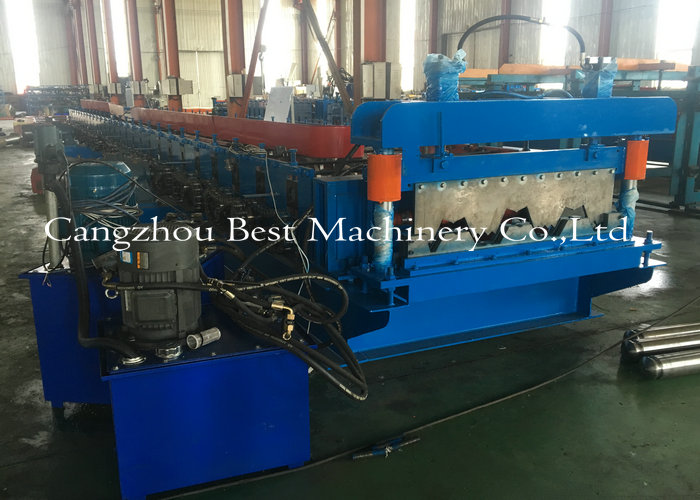

    Machine photos:

    Best Glazed Roof Ridge Cap Roll Forming Machine 3KW 12m/min ProductionBest Glazed Roof Ridge Cap Roll Forming Machine 3KW 12m/min Production



    Machine Parameters:

    NONameSpecification
    1.DecoilerWeight capacityPPGI steel
    Coil Width305mm
    Inner Diameter470-530mm
    2.Film coveringWidth305mm
    3.Forming MachineRoller station14Rows
    Diameter of shaft70mm
    Material of rollers45#Steel
    Technology of rollersQuench to increase the hardness
    Surface of rollersPlate hard Chrome 0.05mm
    Main bearing6210 /bearing steel
    Frame300MmC-Beam
    Middle plate thickness16mm
    Chain1inch

    4.


    Cut Off

    OperationAutomatic hydraulic type
    Material of bladeCR12 steel
    Oil pressure stationMotor,oil pump,electromagnetic valve etc.
    Motor of oil pressure station3KW
    Working pressure0-14MPA

    5


    Automatic stacker


    Size6Meters
    TypeAutomatic Side Roll-out
    Main motor5.5KW
    voltage480V 60HZ

    6.


    Electric Box

    With touch screen

    Data inputimperial system (inches and decimals)
    PLC control systemDelta Brand
    Frequency converterDelta Brand
    CounterOmron
    On-OffDelixi
    7.LanguageEnglish
    8.Length of line10Meters
    9.Speed4M/Minut

    Other Product:


    Our service:

    1). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

    2). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now

    3). Service: We could send the technician to your country to fix the machine if you need.

    4). Warranty: 12 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.


    Our Ridge Cap Forming Machine Advantage

    1. Good quality: We have a professional designer and experienced engineer team.And

    the raw material and accessories we use are good.

    2. Good service: we provide the technical support for whole life of our machines.

    3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

    4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

    5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

    6. Reasonable price:We offer the best price in our industry.
