    Guide Pillar Roofing Glazed Tile Roll Forming Machine with 18 Station Groups

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY28-207-1035
    Certification : CE/BV/SGS
    Supply Ability : 20 sets/month
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Guide Pillar Roofing Glazed Tile Roll Forming Machine with 18 Station Groups


    Guide Pillar Roofing Glazed Tile Roll Forming Machine with 18 Station Groups


    Working flow


    Decoiler----feeding----roll forming----pressing----cut to length----output table

    Machine components

    No.NameQty
    1.De-coiler1 Set
    2.Roll Forming Machine1 Set
    3.Pressing Device1 Set
    4.Hydraulic Cutting Device1 Set
    5.PLC Control Box1 Set
    6.Hydraulic Pump1 Set
    7.Stacker1 Set


    Decoiler

    Inner DiameterΦ508 – Φ610 mm
    Out Diameter1500mm
    Max. Loading Capacity5000kg

    Roll forming

    Material Thickness0.4-0.8mm
    Rollers18steps
    Material for Rollers45# steel polished and coated with chrome HRC55-60℃
    Material for shafthigh grade No.45 steel after treatment
    Diameter of shaft70mm
    Frame panel thickness20mm
    Bottom frame35# H-section steel
    Motor Power5.5 kw
    Driven type1.0"Chain

    Pressing and cutting device

    Type

    bearing sliding type

    Blade materialCr12mov quenching and grinding
    Frame processing

    the whole bottom frame is grinding for high-precision

    Blade processingwire-electrode cutting, but the upper balde can not be straight. this is technology
    WorkingHydraulic type

    Stacker

    Type

    Manual


    Auto(option)


    Length1.5m-2m6m or 12m

    PLC

    Main itemParameter detail
    PLC

    Delta(standard) or according to your request

    InverterChina brand(standard) or according to your request
    Touch screenMcgs(standard) or according to your request
    EncoderChina brand(standard) or according to your request
    Voltage/HZ/Phase380v/50-60hz/3phase

    Hydraulic pump

    Main ItemParameter detail
    Motor

    3kw China brand or according to your request

    PumpChina brand or according to your request
    Solenoid valveChina brand or according to your request
    Cooling system

    Cooling fan


    Terms:

    1. Delivery:30days after receive deposite

    2. Package:export standard package for container

    3. Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)

    4. Delivery date:within 30 working days after receiving deposit

    5. Products Warranty:18months,and we will provide the technical support for whole life of the equipment.


    Re-sale Service :

    1. Send you invitation letter, if you want to visit our factory and check the machines.
    2. Good Quality + Competitive price + Quick Response + Reliable Service.
    Selling Service :
    1. Email the production schedule and make prompt delivery.
    2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
    3. Be here for your service at any time.
    After-sale Service :
    Any questions, contact us by WhatsApp or Telephone.


    Photos

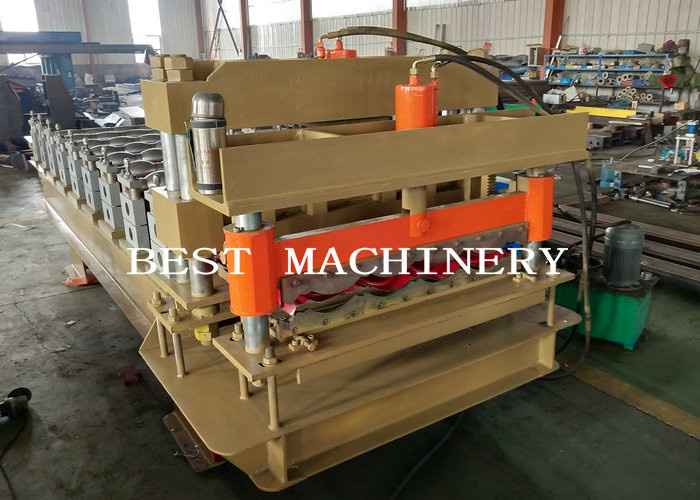

    Guide Pillar Roofing Glazed Tile Roll Forming Machine with 18 Station Groups




    If you need roll forming machine, just send me a inquiry, we have many type machines, we can produce according to your requirement.
