Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers

    Buy cheap Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers from wholesalers

    Buy cheap Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers from wholesalers
    • Buy cheap Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers from wholesalers
    • Buy cheap Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers from wholesalers

    Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers

    Ask Lasest Price
    Brand Name : BEST
    Model Number : BEST-688
    Certification : CE/ISO
    Supply Ability : 10
    Delivery Time : 30 days
    • Product Details
    • Company Profile

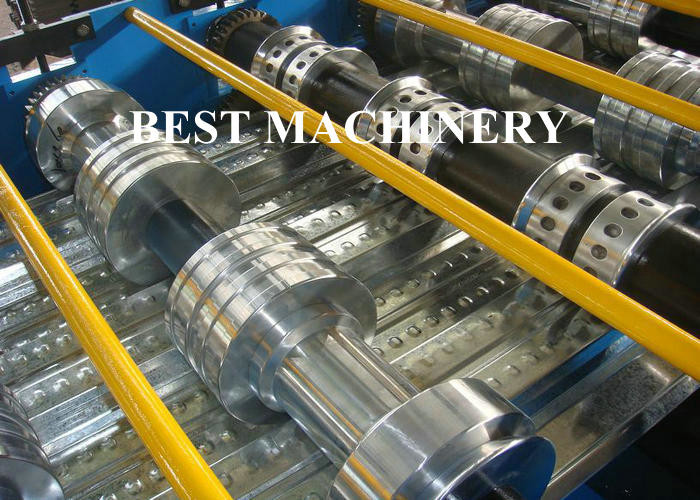

    Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers


    Floor Deck Roofing Making Machine Floor Metal Decking Panel Roll Forming Machine​


    Name of Roll Forming MachineMetal decking roll forming machine Galvanized Steel deck Floor Tile Making Machine
    Profile Drawing or Sample Picture36.jpg
    1Suitable raw materialPPGI/PPGL/GI/GL Steel Coils
    2Thickness of coil sheet0.3-0.8mm
    3Feeding Coil width1000mm
    4Effective width688mm
    5Under frame400H-beam
    6Diameter of Soild shaft70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
    7Roller

    High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

    hard chrome coated 0.05-0.07mm

    8Thickness of middle plateGuide pillar memorial archway
    9Forming stations26
    10Drive typeBy chain(1.0 inch) link bearing model 6210
    11Power of main motor7.5kw with Cycloidal reducer, Lichao, Shanghai
    12Power of pump station4kw, Lichao, Shanghai
    13Forming speedAbout 15-20m/min
    14Hydraulic cuttingControlled by PLC
    15PLCDELTA, TAIWAN / Mitsubishi, Japan
    16Material of cutting bladeCr12Mov, quenching 58-62℃
    17Frequency converter

    It has the advantage of slowing down before cutting, to ensure the

    length accuracy(±1mm, far better than industrial

    standard ±3mm).

    18SwitchCHNT
    19TransducerSAJ

    Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers




    Galvanized 0.7-1.5mm Floor Deck Roll Forming Machine 28 Groups Rollers



    FAQ:

    Q1. What's your payment terms and delivery time?
    A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

    After we get down payment, we will arrange production. About 30-45 days for delivery.

    Q2. Do you have after-sales support?
    A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world. We guarentee your machine running well in order to make your business running well.

    Q3. Do you sell only standard machines?
    A3: No, customized service will be provided for all of our customers. Most of our machines are built according to customers specifications, using top brand components.
    Q4. What will you do if the machine is broken?
    A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
    If the broken parts can't repair, we can send the new parts
    replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

    Q5. Can you be responsible for transport?
    A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

    Q6. How to visit your company?
    A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
    2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.


    Installation and Training:

    ① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    ② Without visiting, we will send you user manual and video to teach you to install and operate.
    ③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
