    T Profile Purlin Channel Hydraulic Roll Forming Machine 8700*1550*1910mm

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : CHBEST-30
    Certification : CE/BV/SGS
    Supply Ability : 15sets/month
    Delivery Time : 35days
    • Product Details
    • Company Profile

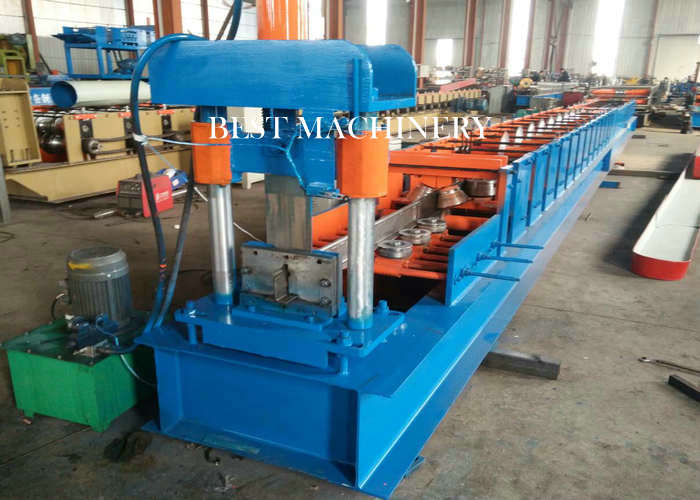

    T Profile Purlin Channel Hydraulic Roll Forming Machine 8700*1550*1910mm

    T Profile Purlin Channel Hydraulic Making Roll Forming Machine


    Company Profile


    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

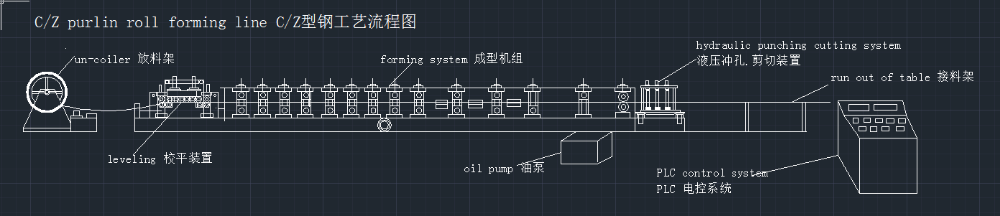

    Working Flow



    Decoiler--Leveling--Roll Forming--Punching--Cutting--Output Table


    Machine Components


    Decoiler1set
    Leveling Device1set
    Roll Forming Machine1set
    Punching Device1set
    Cutting Device1set
    PLC Control System1set
    Hydraulic Pump1set
    Output Table1set

    Machine Parameter


    Decoiler


    Type: Hydraulic Or Manual (Optional)

    Inner Diameter: 450-550mm

    Outter Diameter: 1500mm

    Width: 500mm

    Capacity: 5000kg


    Leveling Device


    Width:600mm

    Rollers For Leveling:5 rollers

    Material For Rollers:GCr15 steel

    Hardness For Heat Treatment:HRC 55-60°


    Roll Forming Machine


    Roller Station: 13steps

    Roller Material: Gcr15 steel

    Thickness: 1mm


    Punching Device


    Adopted with 4 pillars hydraulic punches.
    Length for Punch Table: 1.2m*1.5 m
    Motor for Hydraulic Punch: 7.5 kw
    Hole-Punching Modular: 3 Pics


    Cutting Device


    Type: Hydraulic

    Power:5.5kw

    Driven: 1 inch chain

    Cutting Blade: Cr12 steel


    Control System


    Type: PLC Frequency Control System with touch screen
    PLC brand: Japan Panasonic
    Encoder brand: Omron

    Length Error: ±2mm

    Language: English and Chinese


    Hydraulic Pump


    Power: 3kw

    Oil Type: 46# hydraulic oil

    Pump Brand: China Brand


    Output Table


    Length: 6m

    It is simple and used to load finished product.


    Roller MaterialCold Roller Steel Sheet
    Material For ShaftGCR45steel
    Hardness For Heat TreatmentHRC55-60°
    Diameter Of Shaft80mm
    Frame Panel Thickness20mm
    Bottom Frame360#H-section steel
    Rolling Speed8-12m/min


    Our Service


    Payment type30% T/T prepaid and balance should be paid before loading
    Delivery time30days after receving advance payment.
    Guarantee period18months free service/ pay service all the machine life
    Installation and training

    If buyers visit our factory and check the machine,

    we will teach you how to install and use the machine,

    and also train your workers/technician face to face.
    Without visiting,we will send you user manual and

    video to teach you to install and operate.
    If buyer needs our technician to go to your local factory,

    please arrange board and lodging and other necessary things


    Packing Detall


    1. 1*40 GP container ; main machine naked and fastened with iron wire in the container.

    2.rollers were painted with oil and packed with plastic film.

    3.electrics devices be packed with wooden box.for Standard export packing.

    4. All Components Fixed by steel wire with Container.



    Other Product


    Specializing in the production of automatic c-beam machine, CZ steel machine, roof panel equipment swap, LouCheng board equipment, glazed tile,high-speed guardrail equipment, double caigang watts, doors equipment , light steel keel equipment, solar photovoltaic equipment, water stop plate equipment, rail fence equipment, cullis sink devices, automatic doors, ridge tile equipment, sandwich composite machine, shearing machine, bending machine, slitting machine other caigang watts and cold bending forming equipment.
