    Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : BE-01
    Certification : CE BV SGS
    Price : USD6500-25500/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20sets/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

    Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line

    Electric 3KW Power Roofing Sheet Roof Roll Forming Machine / Production Line

    1. Main Parameter:

    ItemParameters
    According to buyer's requirements
    Raw materialTypeColor plate, aluminium plate, galvanized plate
    Thickness(mm)0.3-0.8
    Width of the feeding materialAccording to buyer's final confirmed profile drawing
    Yield strength(Mpa)230-550
    Forming speed(m/min)12-15 (not contain cutting)
    Roller material45 # sheet with chrome coated
    Roller driven typeChain transmission
    Control SystemPLC (Panasonic) as list in the note
    Operation typeTouch screen + button
    Hydraulic system pressure( MPa )10-12
    Hydraulic motor power ( KW )3
    Main motor power(KW)3
    Roller Stations22 stations or according to profile
    Shaft Material and DIA70mm, material is 45 # forge steel
    Roller Material45# forge steel, coated with chrome
    Electric Source380V, 50HZ,3 phase
    According to customer’s require
    Material Of CuttingCr12Mov quenching 58-62℃
    Dimension(L*W*H)Forming Section about 11.0m*1.7m*1.6m
    Weight of machineAbout 5~8 tons

    Machine List

    Hydraulic decoiler ( 5 Tons )1 unit
    Main Roll Forming Machine1 unit
    Cutting Device1 unit
    Electrical System with PLC Control1 unit
    Hydraulic station2 unit
    Auto stacker1 unit

    2. Machine details:

    DECOILER
    (1) Max. Width: 1250 mm
    (2) Inner Diameter: Φ450 – Φ550 mm
    (3) Out Diameter: 1500 mm
    (4) Max. Loading Capacity: 5000 kgs


    ROLL FORMING MACHINE
    (1) Material Thickness: 0.3-0.8mm PPGI and GI

    (2) NO. of roller Stations: 16groups
    (3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
    (4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

    (5) Diameter of shaft: 70mm


    CUT-OFF DEVICE

    (1) Material for Cut-Off Modular:Cr12 steel after treatment
    (2) Hardness for Heat Treatment:HRC58 – 62°
    (3) Cut-Off Type: Hydraulic, Automatic Cut-Off
    (4) Motor for Hydraulic Stand: 3 kw


    PLC CONTROL BOX
    (1) Type: PLC Frequency Control System with touch screen
    (2) PLC Brand:Delta
    (3) Encoder Brand: Omron

    (4) Length Error: ±2mm

    (5) Language: English and Chinese

    (6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)


    HYDRAULIC PUMP STATION

    (1) Motor power: 3 kw
    (2) Oil type: 46# hydraulic oil
    (3) Pump brand: China brand


    PRODUCTION SUPPORT TABLE

    (1) No power type
    (2) Length: 2m


    3. Packing:

    - 1. Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

    - 2. This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

    - 3. All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.


    4. Installation and Training:

    1If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    2Without visiting, we will send you user manual and video to teach you to install and operate.
    3

    If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.


    5. Our Warranty:

    1. The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.

    2. If the equipment are out of work in the guarantee period, the buyer need our repairman to go to buyer’s factory, the buyer should be responsible for the tickets(including round-trip ticket), the fee of transportation to the buyer’s factory andaccommodation. Required to change spare parts, the buyer should afford the freight fee and we don’t ask extra fee.


    6. Our main products include:

    Villa Keel Roll Forming MachineStud and Track Keel Roll Forming Machine
    Omega Profiles Keel Roll Forming MachineProfiles Bending Roll Forming Machine
    Ceiling Keel Roll Forming MachineDouble Layer Roofing Tile Roll Forming Machine
    Metal Roofing Roll Forming MachineFloor Deck Roll Forming Machine
    C-Purlin Forming MachineLight Steel Forming Machine
    Ridge Tile Forming MachineBending Machine
    Our machines are customized, we can produce according to your requirementWelcome to inquiry

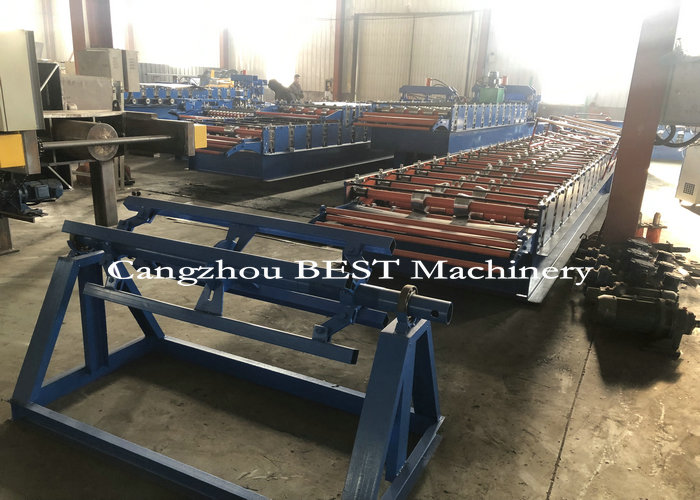

    7. Photos for Reference:


    We can produce according to your requirements.
