    High Speed Max 25-30m/Min Roof Sheet Cold Roll Forming Machine Hydraulic Cutting Type

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY1020
    Certification : CE/BV/SGS
    Supply Ability : 20 sets/month
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    High Speed Max 25-30m/Min Roof Sheet Cold Roll Forming Machine Hydraulic Cutting Type


    High Speed Max 25-30m/min Roof Sheet Cold Roll Forming Machine


    Machine components


    Name

    NO.

    Unit

    1.De-coiler

    1

    set

    2.Forming machine

    1

    set

    3.Cutting device

    1

    set

    4.PLC control box

    1

    set

    5.Hydraulic pump station

    1

    set

    6.Production support table

    1

    set


    Specifications:

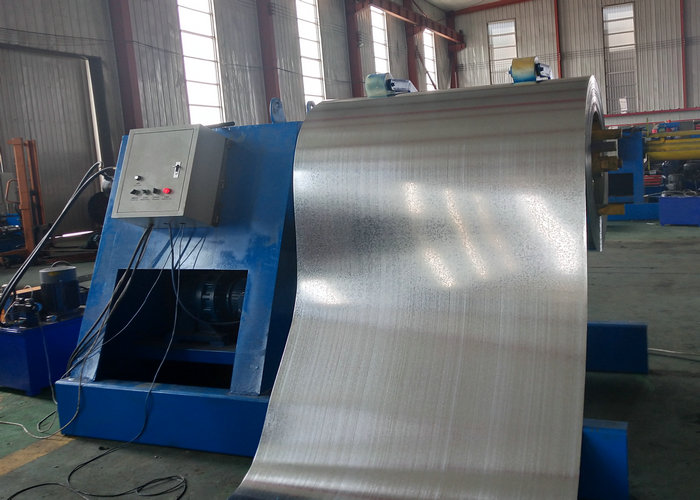

    1.DECOILER


    (1) Max. Width: 1250 mm
    (2) Inner Diameter: Φ450 – Φ550 mm
    (3) Out Diameter: 1500 mm
    (4) Max. Loading Capacity: 5000 kgs

    (5)Type: Manual or hydraulic


    2. ROLL FORMING MACHINE


    (1) Material Thickness: 0.3-0.8mm PPGI and GI

    (2) NO. of roller Stations: 19groups
    (3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
    (4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

    (5) Diameter of shaft: 70mm

    (6) Frame panel thickness: 20mm

    (7) Bottom frame: 350 H-section steel
    (8) Motor Power: 11kw

    (9)Driven type: 1.0"Chain

    (10)Speed:20-30mm/min

    3. CUT-OFF DEVICE


    (1)Material for Cut-Off Modular:Cr12 steel after treatment
    (2)Hardness for Heat Treatment:HRC55 – 60°
    (3)Cut-Off Type: Hydraulic, Automatic Cut-Off
    (4) Motor for Hydraulic Stand: 3 kW


    4.PLC CONTROL BOX


    (1) Type: PLC Frequency Control System with touch screen
    (2) PLC Brand:Delta
    (3) Encoder Brand: Omron

    (4)Length Error: ±2mm

    (5)Language: English and Chinese

    (6)Voltage: 380v/50HZ, 3Phase

    (it depends on customer requirement)


    5. HYDRAULIC PUMP STATION


    (1) Motor power: 3 kw
    (2)Oil type: 46# hydraulic oil
    (3) Pump brand: China brand


    6. PRODUCTION SUPPORT TABLE


    (1) auto stacker
    (2)Length: 6m

    (3)Power:1.5kw


    7.Spare part


    Chain x1; Bearing x 1; limit switch x1


    Working conditions
    1.working size25m x 2m x 4m
    2.Power supply8.5kw
    3.Frequency50-60HZ
    4.Wires/cables4-6mm²(length according to workshop)
    5. Labor cost2 workers
    6. ToolsSpanners and screwdriver
    7.Lift device3-5t forklift or crane

    Training and Installation


    1 We offer installation service local in paid, reasonable charge.
    2 QT test is welcome and professional.
    3. manual and using guide is optional if no visiting and no installation.

    Certification and after service
    1. Match the technology standard, ISO producing certification
    2. CE certification
    3. 12 months warranty since the delivery. Board.

    Our advantage:
    1. Short delivery period.
    2. Effective communication
    3. Interface customized.


    Advantages

    Forming machine rollers are manufactured from high quality bearing 45 # steel(not A3 steel), which make roller more wearable and longer life;

    Forming machine housing is manufactured from H steel(not angle iron),which the machine run in stable situation and avoid vibration to affect forming precision;

    The key components of PLC control system, electric switches, electric motors, drives and hydraulic componentsare famous brands to ensure the machines in good and stable working order for long time;

    Forming machine all parts with special treatment for anti-corrosion and long life(shaft chromeplated, straining beam galvanized ,screw rod black painted);

    Forming machine all parts baking finishing and then assembly


    Machine Photo
