    Metal Roll Forming Roofing Sheet Machine PPGI / GI Material With PLC Control

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : CHBEST-840
    Certification : CE/ISO
    Supply Ability : 15sets/month
    Delivery Time : 35days
    • Product Details
    • Company Profile

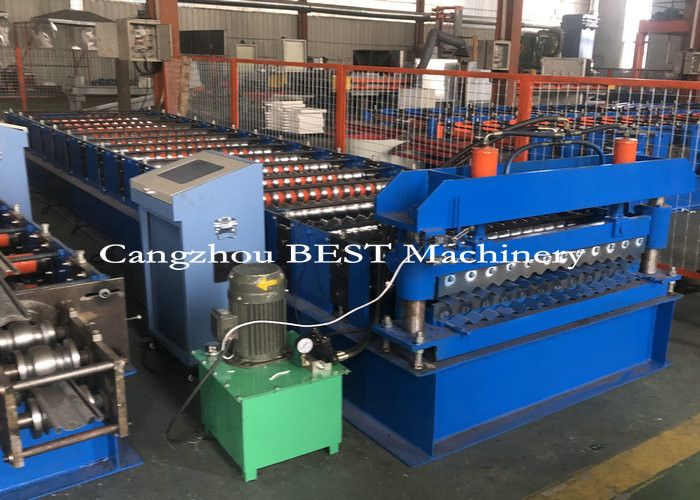

    Metal Roll Forming Roofing Sheet Machine PPGI / GI Material With PLC Control

    Trapezoidal Roof Sheet Metal Roll Forming Machine Supplier PLC Control

    Company Proifle
    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

    Machine Component

    Decoiler1set
    Roll Forming Machine1set
    Cutting Device1set
    PLC Control Box1set
    Hydraulic Pump1set
    Output Table1set


    Working Flow
    Decoiler------feeding------roll forming------cut to length-----output table

    Decoiler

    Width1250mm

    Inner Diameter

    450-550mm

    Out Diameter

    1500mm
    Capacity5000kg
    TypeManual Or Hydraulic


    Roll Forming Machine
    Material Thickness: 0.3-0.8mm PPGI and GI
    Roller Stations: 11groups
    Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

    Diameter of shaft: 70mm
    Shaft Material: 45# steel
    Frame panel thickness: 14mm
    Bottom frame: 36# H-section steel
    Motor Power: 3kw

    Driven type: 0.6"Chain
    Speed:8-12m/min


    Cutting Device

    Hydraulic Power3kw
    Cutting Type

    Hydraulic, Automatic Cut-Off

    Cutting Blade Material

    Cr12 steel after treatment
    Hardness for Heat Treatment:HRC55 – 60°


    Control System
    Type: PLC Frequency Control System with touch screen
    PLC Brand:Delta
    Encoder Brand: Omron

    Length Error: ±2mm
    Language: English and Chinese
    Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

    Hydraulic Pump

    Motor Power3kw
    Oil Type

    46# hydraulic oil

    Pump Brand

    China Brand



    Pre-Sales-Service
    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    Without visiting, we will send you user manual and video to teach you to install and operate.
    After-sales-Service
    Training how to instal the machine, training how to use the machine.
    Engineers available to service machinery overseas.
    If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
