    Trapezoidal Metal Roofing Sheet Roll Forming Machine , Iron Sheet Making Machine

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : CHBEST-840
    Certification : CE/ISO
    Supply Ability : 15sets/month
    Delivery Time : 35days
    Price : USD+8000+SET
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    • Product Details
    • Company Profile

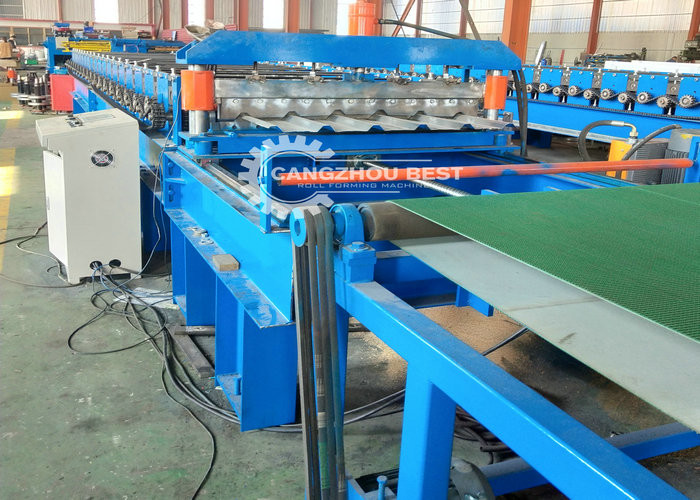

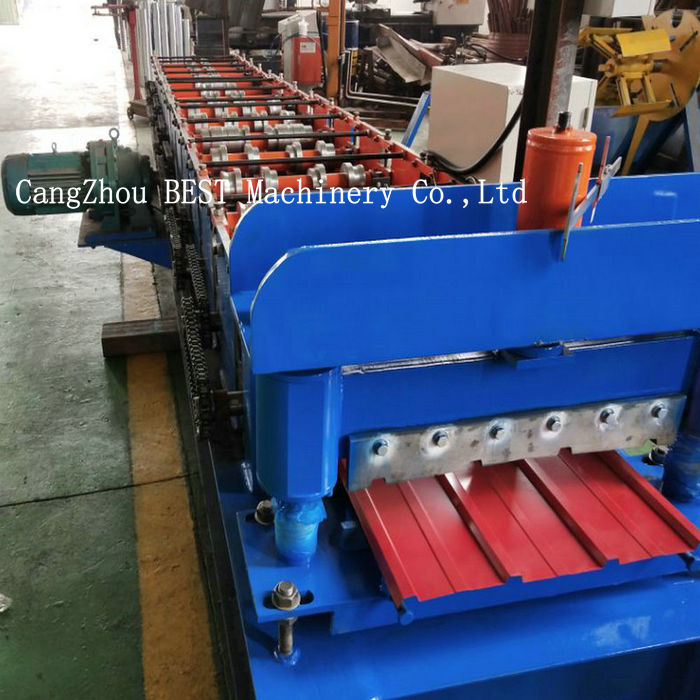

    Trapezoidal Metal Roofing Sheet Roll Forming Machine , Iron Sheet Making Machine

    Trapezoidal Roof Sheet Metal Roll Forming Machine Supplier PLC Control


    No.NameQty.
    1Decoiler1set
    2Feeding and guiding device1set
    3Roll forming machine1set
    4Punching machine with servo feeding1set
    5Hydraulic cutting device1set
    6PLC control box1set
    7output table1set

    Roll Forming Machine

    Material Thickness: 0.3-0.8mm PPGI and GI

    Roller Stations: 11groups
    Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

    Diameter of shaft: 70mm

    Shaft Material: 45# steel

    Frame panel thickness: 14mm

    Bottom frame: 36# H-section steel
    Motor Power: 3kw

    Driven type: 0.6"Chain
    Speed:8-12m/min


    Cutting Device

    Hydraulic Power3kw
    Cutting Type

    Hydraulic, Automatic Cut-Off

    Cutting Blade Material

    Cr12 steel after treatment
    Hardness for Heat Treatment:HRC55 – 60°


    Control System

    Type: PLC Frequency Control System with touch screen
    PLC Brand:Delta
    Encoder Brand: Omron

    Length Error: ±2mm

    Language: English and Chinese

    Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)


    Hydraulic Pump

    Motor Power3kw
    Oil Type

    46# hydraulic oil

    Pump Brand

    China Brand


    Output Table

    No power type
    Length: 2m


    Company Proifle

    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.


    Packing Detall

    1*40 GP container ; main machine naked and fastened with iron wire in the container.
    2. rollers were painted with oil and packed with plastic film.

    3. electrics devices be packed with wooden box.for Standard export packing.

    4. All Components Fixed by steel wire with Container.


    Pre-Sales-Service

    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

    Without visiting, we will send you user manual and video to teach you to install and operate.

    After-sales-Service

    Training how to instal the machine, training how to use the machine.

    Engineers available to service machinery overseas.

    If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.


    RFQ


    Q: Can you make the machine according to my design or proto type?


    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us


    Q: Are you a factory or trading company ?


    A: We are a factory?


    Q: Where is your factory located?


    A: Our factory is located in Botou City,Hebei Province, China. All our clients, from home or abroad, are warmly welcome to visit us !


    Q: How do you guarantee the quality of the products?


    A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory


    Every one of our products have strict testing procedures, must be 100% quality assurance.


    Q: How can we be assured that you will deliver us quality machine with spare parts?


    A: 1. Customers to send the technical people to our factory for checking the quality.


    2. We can send the technicians to the buyer`s factory for the installation of the machine.


    3. Good aftersales-service, its free of charge during the warranty period.
