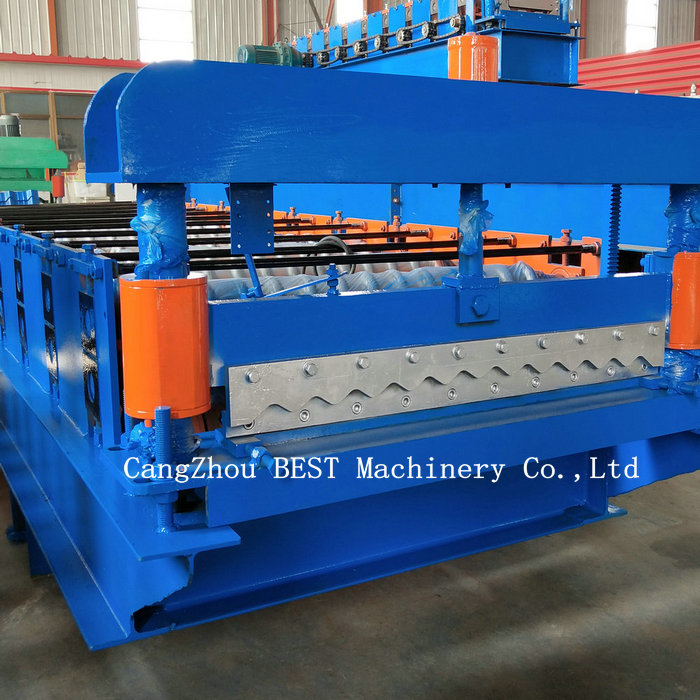

    Corrugated Roof Sheet Steel Making Cold Roll Forming Machine With High Speed

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : CHBEST-840
    Certification : CE.ISO
    Supply Ability : 15sets/month
    Delivery Time : 35days
    • Product Details
    • Company Profile

    Corrugated Roof Sheet Steel Making Cold Roll Forming Machine With High Speed

    Corrugated Roof Sheet Steel Making Roll Forming Machine Hydraulic Cutting


    Working Flow

    Decoiler------feeding------roll forming------cut to length-----output table


    Decoiler

    Width1250mm

    Inner Diameter

    450-550mm

    Out Diameter

    1500mm
    Capacity5000kg
    TypwManual Or Hydraulic

    Roll Forming Machine

    Material Thickness: 0.3-0.8mm PPGI and GI

    Roller Stations: 11groups
    Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

    Diameter of shaft:70mm

    Shaft Material: 45# steel

    Bottom frame: 36# H-section steel
    Motor Power: 3kw

    Driven type: 0.6"Chain
    Speed:8-12m/min

    Frame panel thickness: 14mm


    Cutting Device

    Type

    Hydraulic, Automatic Cut-Off

    Cutting Blade Material

    Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60°

    Power3kw

    Control System

    Type

    PLC Frequency Control System with touch screen

    PLC Brand

    Delta

    Encoder Brand

    Omron

    Length Error

    ±2mm
    Voltage

    380v/50HZ, 3Phase


    Hydraulic Pump

    Motor power: 3 kw
    Oil type: 46# hydraulic oil
    Pump brand: China brand


    Output Table

    No power type
    Length: 2m


    Company Profile

    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.


    Our Service

    Pre-Sales-Service

    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

    Without visiting, we will send you user manual and video to teach you to install and operate.

    After-Sales-Service

    Training how to instal the machine, training how to use the machine.

    Engineers available to service machinery overseas.

    If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.


    Packing Detall

    1*40 GP container ; main machine naked and fastened with iron wire in the container.
    2. rollers were painted with oil and packed with plastic film.

    3. electrics devices be packed with wooden box.for Standard export packing.

    4. All Components Fixed by steel wire with Container.


    Other Product

    roof tile machine, double layer machine, highway guardrail machine, c z purlin machine, ceiling drywall machine, water tube machine, ridge cap machine,water gutter machine, roller shutter door machine, cable tray machine, u guide rail machine, door frame machine, rack upright machine, sandwich panel machine.
