    380V Stud And Track Roll Forming Machine , Gypsum Board Light Steel Keel U Track Making Machine

    Gypsum Board Light Steel Keel U Track Making Roll Forming Machine


    Working Flow



    Decoiler--Feeding--Roll Forming--Cutitng--Output Table


    Machine Components


    No.NameQty
    1.De-coiler1 Set
    2.Roll Forming Machine1 Set
    3.Hydraulic Cutting Device1 Set
    4.PLC Control Box1 Set
    5.Output table1 Set

    Machine Paraneter


    Decoiler


    Inner Diameter: 450-550mm

    Width: 500mm

    Outter Diameter: 1500mm


    Roll Forming Machine


    Weight: 3t

    Shaft: 60mm

    Shaft Material: 45# steel

    High Speed: 20-30m/min


    Cutting Device


    Type: Mould Cutting

    Power: 3kw

    Cutitng Blade; Cr12 steel

    Hardness for Heat Treatment:HRC58 – 62°


    Control System


    Type: PLC Frequency Control System with touch screen

    PLC Brand: Delta

    Encoder Brand: Omron

    Language: English and Chinese


    Hydraulic Pump


    Power: 3kw
    Oil Type: 46# hydraulic oil
    Pump Brand: China Brand


    Output Table


    Length: 6m

    It is simple and used to load finished product.


    Material specificationGalvanized and pre-painted galvanized steel.
    Main motor power3kw.
    Feeding width124mm.
    Cover width60mm.
    Yield stress235Mpa(33KSI) ~ 345Mpa (50KSI).
    Cutting Tolerance±2mm
    Manual UncoilerMax. Capacity: 5000kgs.
    VoltageAs per customer’s request.
    Numbers of stands10 stands/stations/pairs.
    Roller material

    Cr 12 steel polished and coated with chrome HRC58-62°

    Bottom Frame360H steel
    Type of cuttingRoll-formed and length-set profile cutting.
    Drive typeGear


    Our Service


    Payment type: 30% T/T prepaid and balance should be paid before loading
    Delivery time: 30days after receving advance payment.
    Guarantee period: 18months free service/ pay service all the machine life
    Installation and training:
    If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
    Without visiting,we will send you user manual and video to teach you to install and operate.


    Company Profile


    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

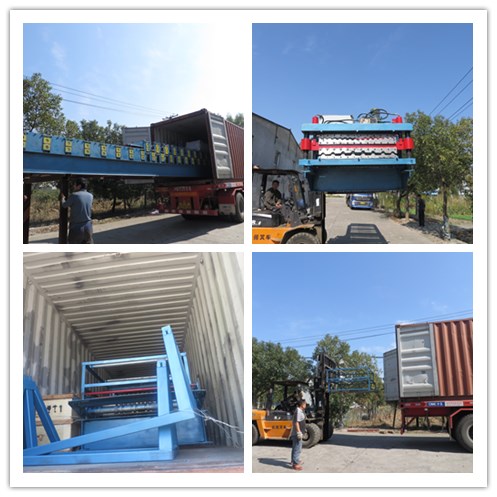

    Packing Detall


    1. 1*40 GP container ; main machine naked and fastened with iron wire in the container.

    2.rollers were painted with oil and packed with plastic film.

    3.electrics devices be packed with wooden box.for Standard export packing.

    4. All Components Fixed by steel wire with Container.



    Other Product


    Specializing in the production of automatic c-beam machine, CZ steel machine, roof panel equipment swap, LouCheng board equipment, glazed tile,high-speed guardrail equipment, double caigang watts, doors equipment , light steel keel equipment, solar photovoltaic equipment, water stop plate equipment, rail fence equipment, cullis sink devices, automatic doors, ridge tile equipment, sandwich composite machine, shearing machine, bending machine, slitting machine other caigang watts and cold bending forming equipment.
