    Half Round Water down Gutter Profile Cold Roll Forming Machine

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : XY125
    Certification : CE/BV/SGS
    Supply Ability : 10 sets/month
    Delivery Time : 40-50 days
    • Product Details
    • Company Profile

    Half Round Water down Gutter Profile Cold Roll Forming Machine


    Half Round Water down Gutter Profile Cold Roll Forming Machine

    Application


    The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
    It will make the project more integrate, and help enhancing the image of all project.
    Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

    Working flow

    Decoiler----feeding----roll forming----cut to length----output table


    Machine components


    NameQty.
    Decoiler1set
    Forming machine1set
    Cutting device1set
    Hydraulic pump1set
    Output table1set

    Parameter


    1. Suitable to process: Color steel plate
    2. Width of the plate: 470mm
    3. Rollers:18stations
    4. Material thickness:0.3-0.8mm
    5. Power: 4+4kw
    6. Bottom frame: 360H steel
    7. Diameter of the roller:Φ70mm
    8. Weight: About 6.8T
    9. Voltage: 380V 50Hz 3phases
    10. Hydraulic: 40#
    11. Processing precision: Within 1.00mm
    12. Control system: PLC control


    Manual Uncoiler

    Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:3000KG.Inner diameter: 500-508mm

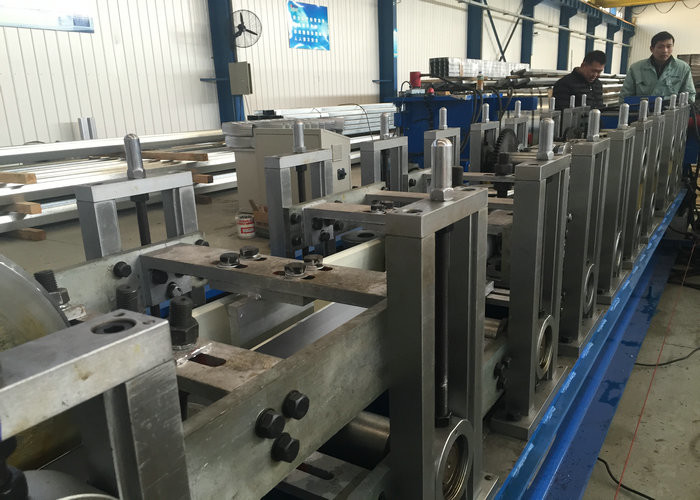

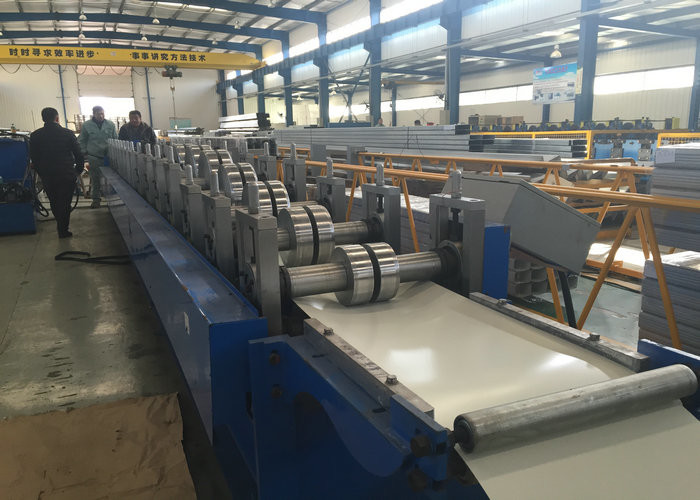

    Main Roll Forming Machine

    Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.


    Hydraulic System AND Computer Control Cabinet

    Hydraulic oil: 40#
    hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
    The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
    PLC: EURA(Can customize as customer require)


    Shearing Mechanism

    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
    Material of blades: Cr12,quenching treatment


    Output Table

    It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.


    Working conditions
    1.working size15m x 2m x 4m
    2.Power supply6kw
    3.Frequency50-60HZ
    4.Wires/cables4-6mm²(length according to workshop)
    5. Labor cost2 workers
    6. ToolsSpanners and screwdriver
    7.Lift device3-5t forklift or crane

    RFQ


    Step 1: Tell us your requirements

    Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

    Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

    Step 4: Advanced payment and production

    Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

    Step 6: Balance payment and shipping

    Step 7: Handing Shipping files to help clients get goods from transporter in time.

    Step 8: Clients get goods and go into warranty time.
